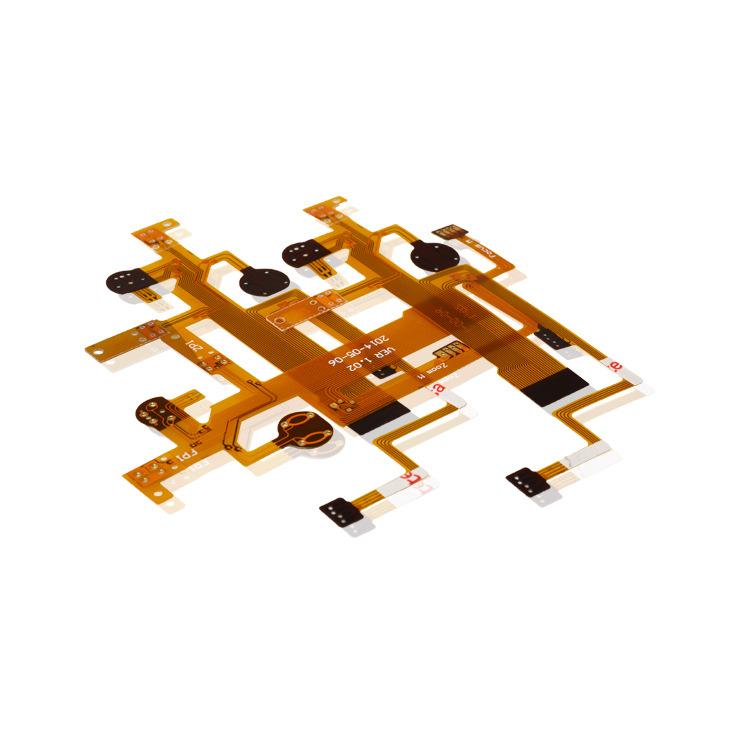

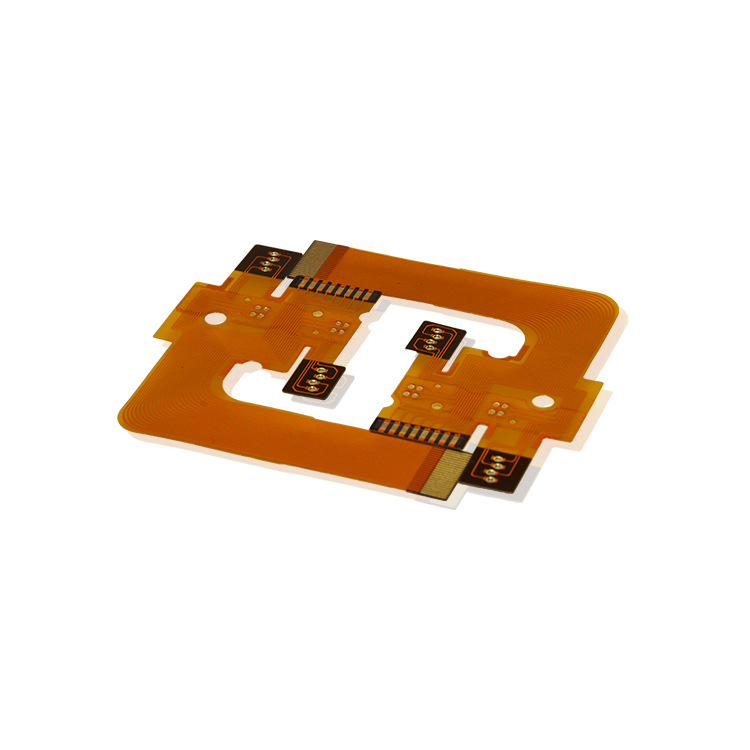

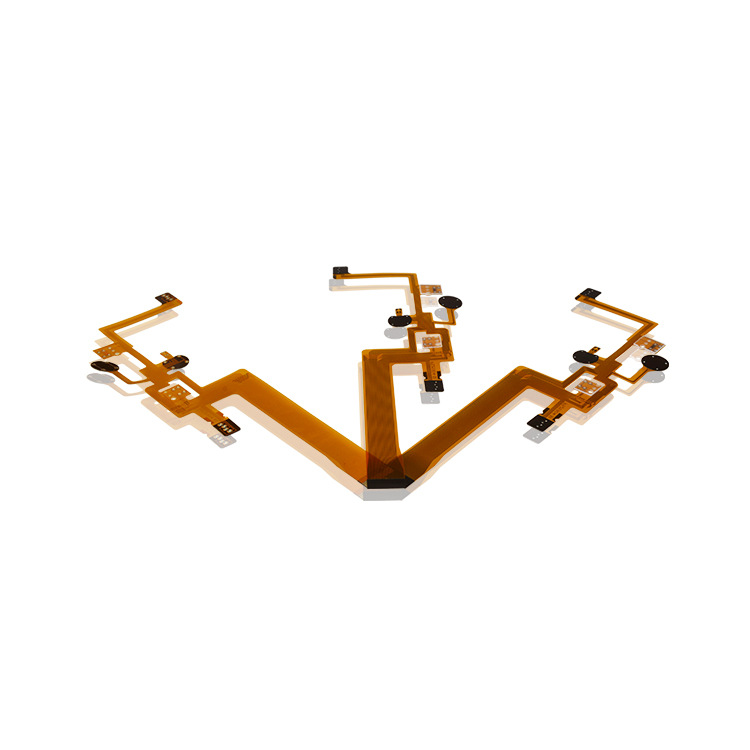

Flexible Printed Circuit (FPC) cable for LCD Display, Printer, Camera, Mobile Phone, etc

Product Name	Flexible Printed Circuit (FPC) cable
Layer	1－6layer
FPC size（max/min）	Min: 10x45mm Max:250x1200mm
Thickness	0.050mm—0.2mm
Through Hole diameter（Max）	6.5mm
Through hole size（min）	0.2mm
Through hole tolerance	±0.025mm
Hole copper thickness	Min8μm Max38μm
Min line width/space	0.04/0.04 mm
Etching Tolerance	±20％
The accuracy of the pattern on the hole	±2mil
Punching size(max)	φ3.175mm
Punching size(min)	φ2.0mm
Punching aperture Thickness(Max)	0.2mm
Thermosetting inks tolerance	±0.2mm
Green oil（Min）	0.1mm
Solder pad(min)	8mil*8mil
Solder pad distance(Min)	8mil*8mil
tolerance(Min)	±0.1mm
Available Laminates Material	Pl. PET. FR4-Pl
Copper foil thickness	12um, 18um, 35um, 70um
Acceptable File Format	Gerber file,Powerpcb,CAD,AUTOCAD,P-CAD,CAM-350,CAM2000
Sample	Provide sample at low cost
Application	Widely used in the link between the print head and the main board of various printers, plotters, scanners, copiers, stereos, LCD TVs, fax machines, various DVD players, and other products
